Catmull-Rom Spline

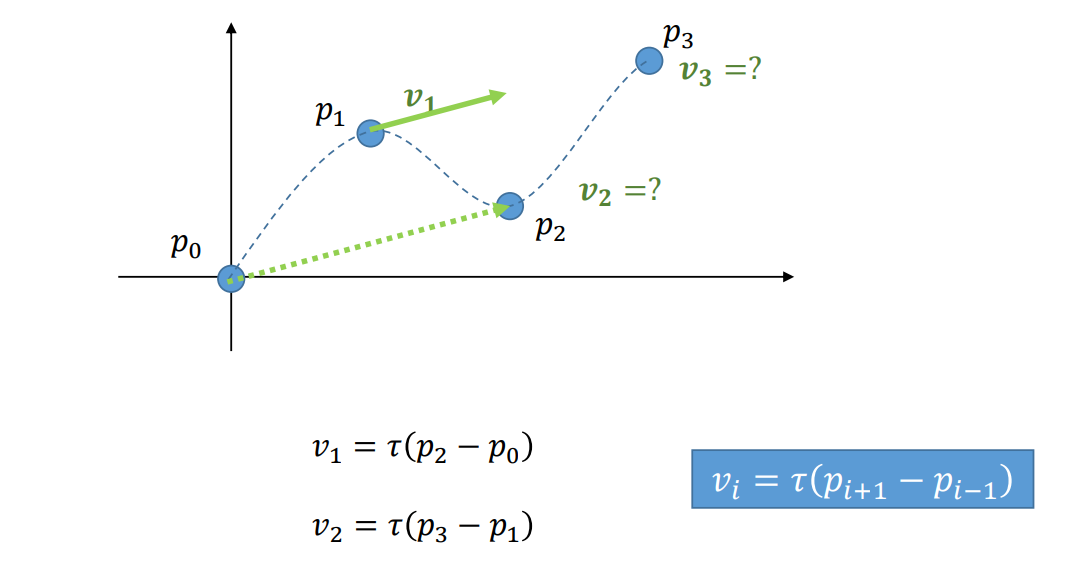

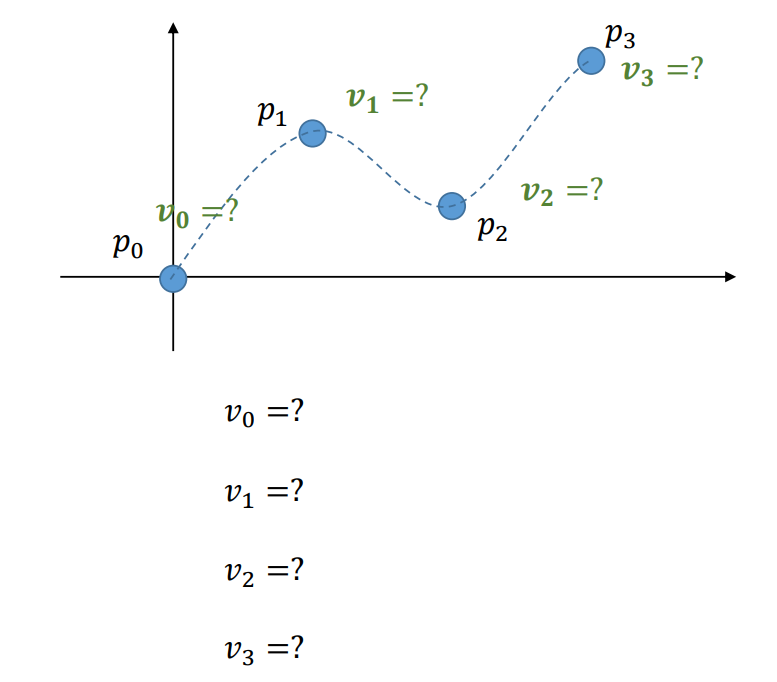

Without tangent vectors?
 |
 |
 |
 |
 |

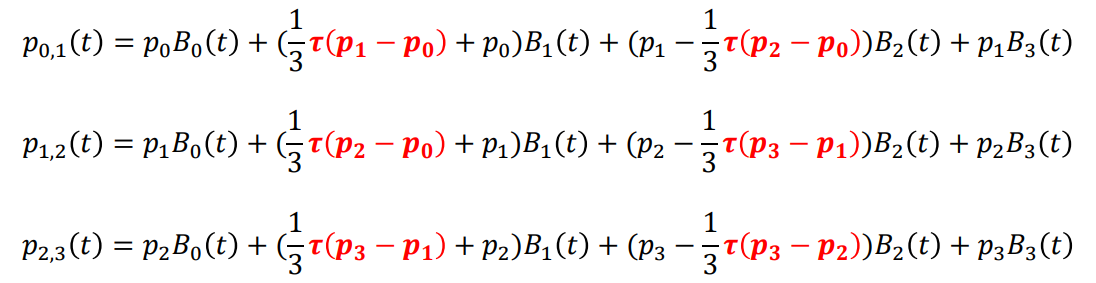

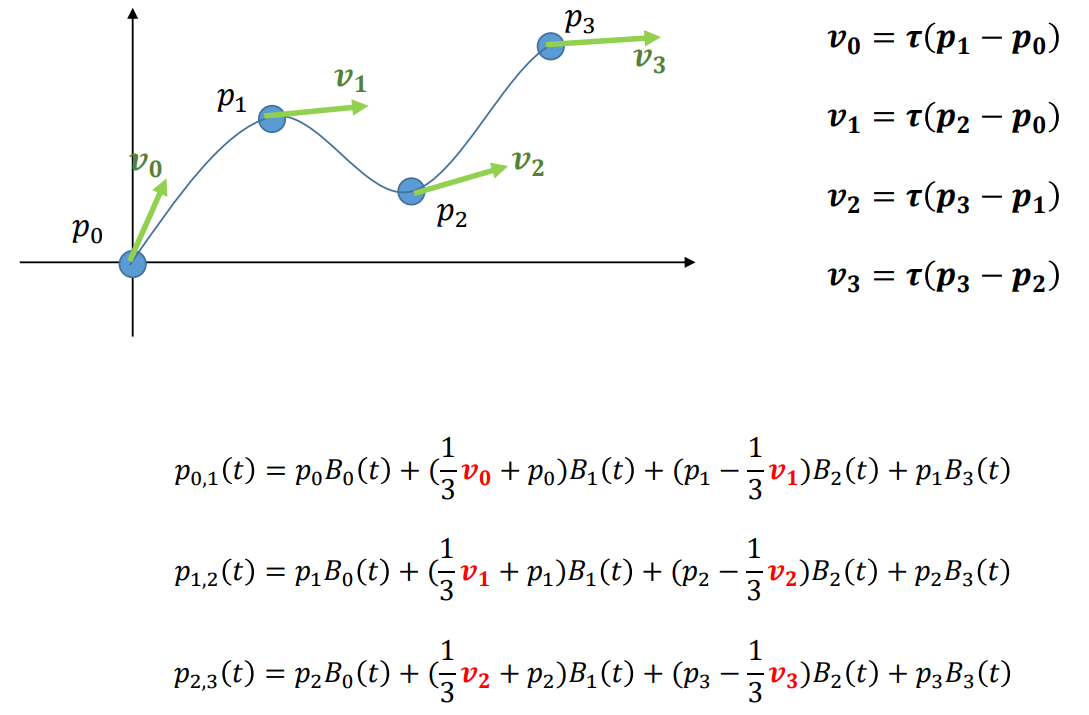

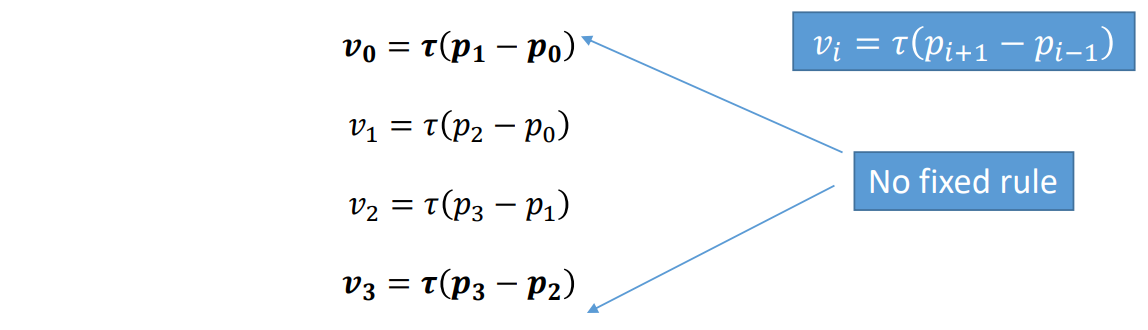

Cubic Splines

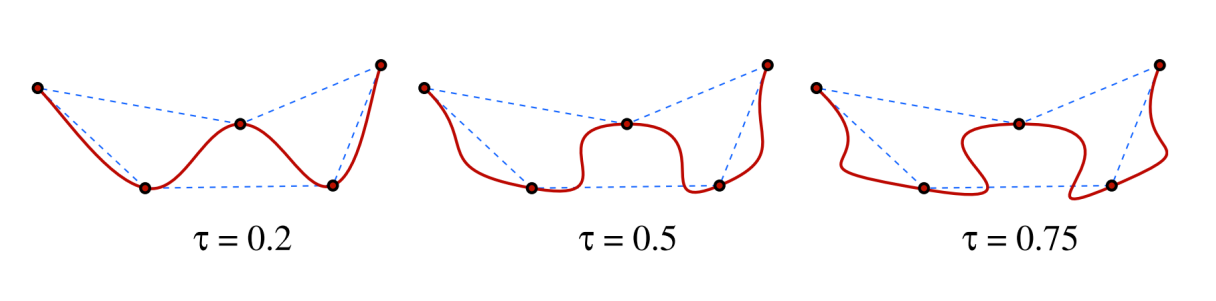

- τ(타우) 값에 따른 그래프의 변화
Catmull-Rom Spline Properties
- Variation Diminishing
- the curve in 2D space does not oscillate about any straight line more often than the control point polygon.
- $C^{1}$-continuity
- Local Controllability
Question

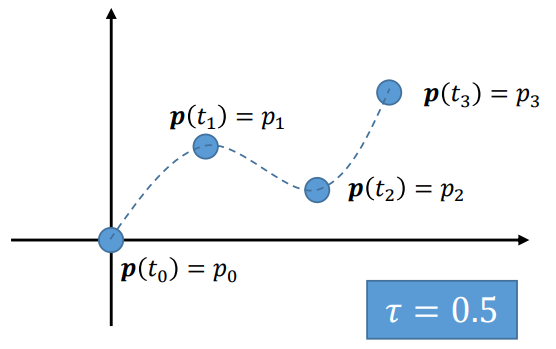

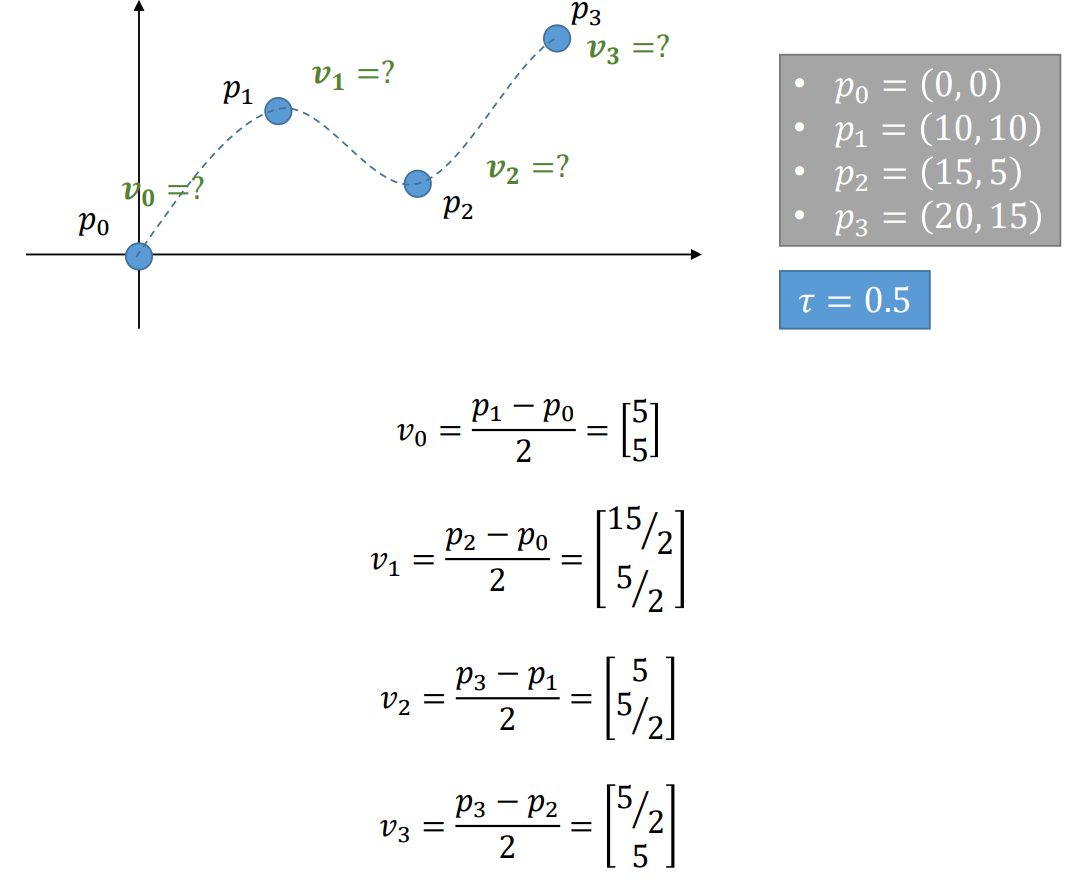

- Find a catmull-rom cubic spline interpolating the four key points with $\tau = 0.5$
- $p(t) = L_{0}(t)p_{0} + L_{1}(t)p_{1} + L_{2}(t)p_{2} + L_{3}(t)p_{3}$
- $p_{0} = (0, 0)$
- $p_{1} = (10, 10)$
- $p_{2} = (15, 5)$
- $p_{3} = (20, 15)$

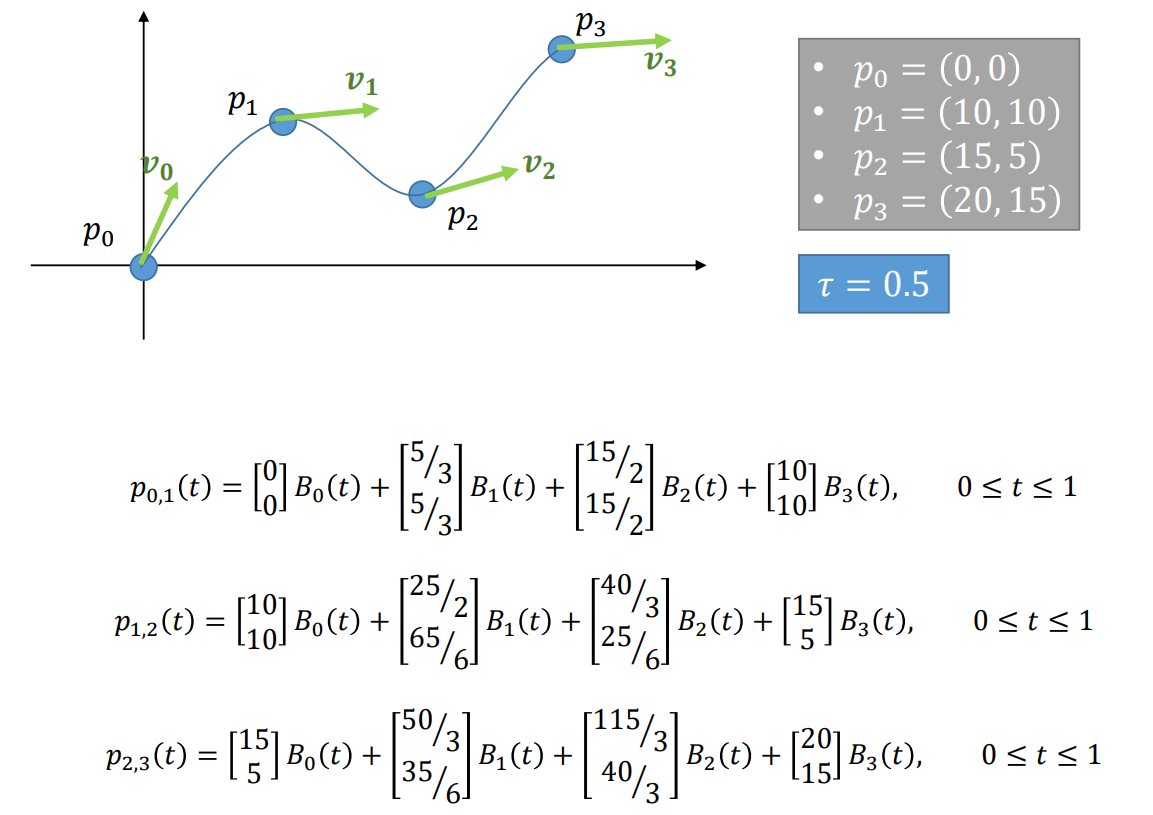

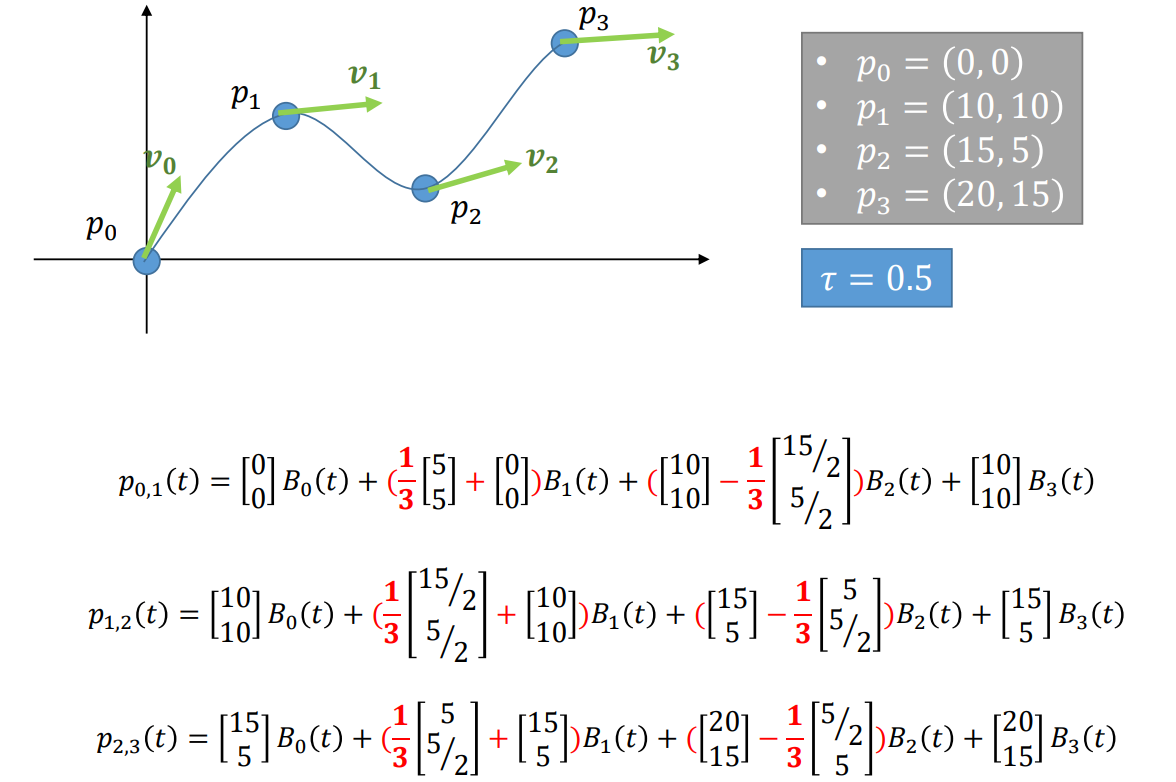

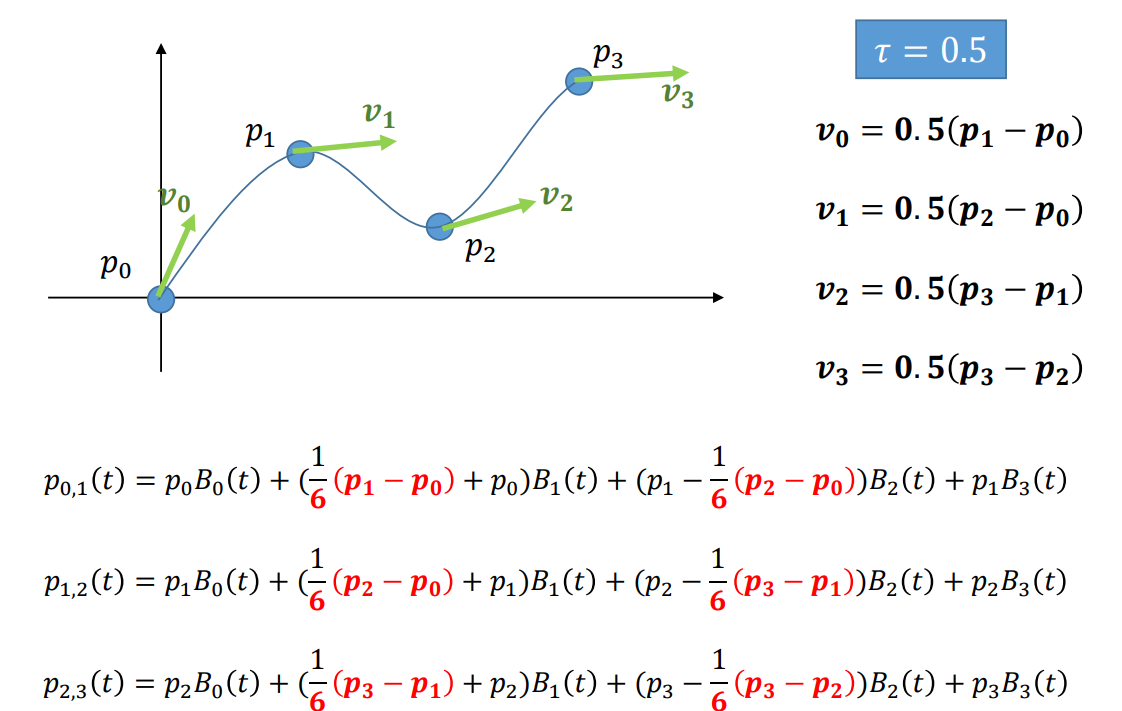

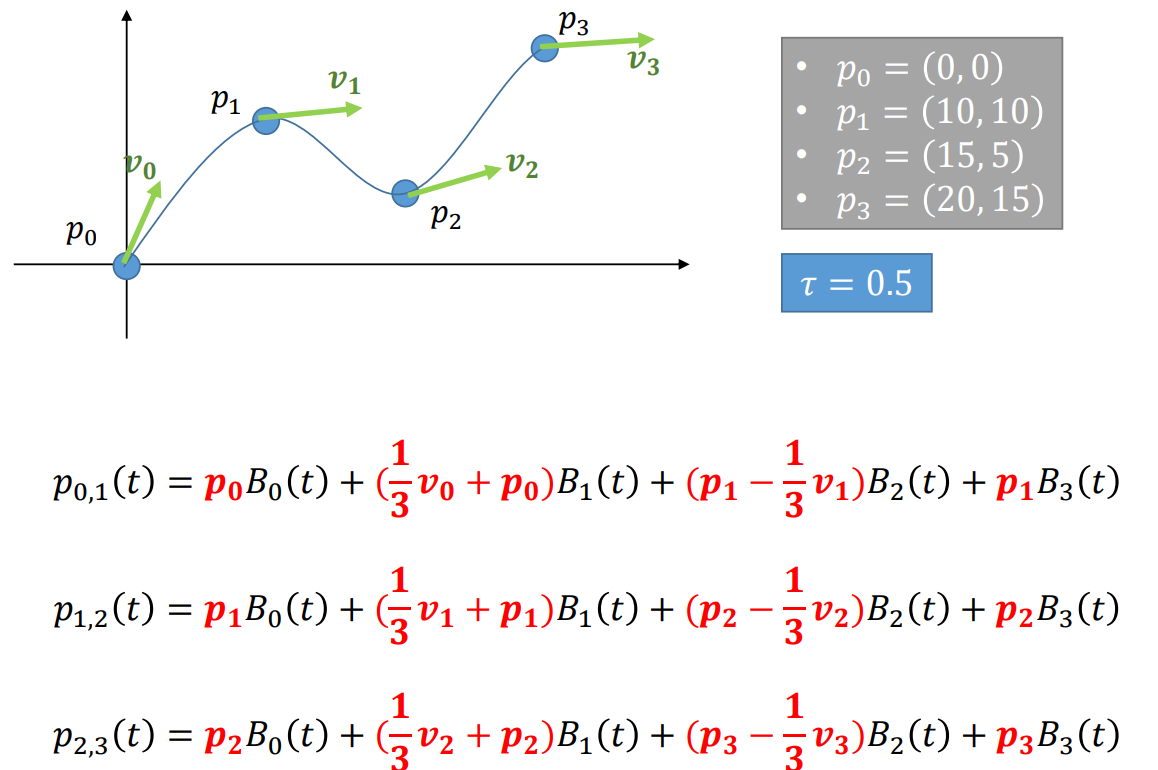

Solution
 |
 |
 |
 |
